VacMaster publishes a 12.5 x 15 x 5 in usable chamber and a 12.25 in seal bar for the VacMaster VP230. One core field is not settled by those sources: weight (sources disagree). The pump is oil-lubricated, so it carries a recurring oil-change requirement.
This is a source-backed specification analysis, not a hands-on review. It records the model's published chamber, seal-bar, pump, power, and weight data; identifies omissions or contradictions; and explains which measurements a buyer should verify. Chamber Bench has not physically tested this machine.
What the manufacturer publishes
The records below come from current manufacturer pages, manuals, and listing evidence checked on 2026-08-28.
Scroll horizontally to see every column.
| Seal bar | |
|---|---|
| Chamber | |
| Pump | 1/2 HP rotary oil pump — Verified published record — VacMaster product page · VacMaster support note |
| Power | 370 W; 110 V, 60 Hz, 4 A — Verified published record — Amazon listing · VacMaster product page · VacMaster support note |
| Weight | Conflicting published values: 89 Pounds / 82 lbs / 96.8 lbs — Conflicting published record — VacMaster product page · VacMaster support note · Amazon listing |
| Model | VP230 |
Current official and listing sources publish 82 lb, 89 lb, and 96.8 lb. We retain all three and select none.
Every published record, field by field
One record is left unresolved by its published sources: weight.
Settled by the maker’s own sources
- Seal bar:
- Chamber:
- Pump: 1/2 HP rotary oil pump — Verified published record — VacMaster product page · VacMaster support note
- Power: 370 W; 110 V, 60 Hz, 4 A — Verified published record — Amazon listing · VacMaster product page · VacMaster support note
Left unanswered, or contradicted
- Weight: Conflicting published values: 89 Pounds / 82 lbs / 96.8 lbs — Conflicting published record — VacMaster product page · VacMaster support note · Amazon listing
How it compares
Three other shortlisted machines for context on the specifications that decide fit. See the full eight-machine buying guide.
Scroll horizontally to see every column.
| Model | Seal bar | Chamber | Pump | Weight | Analysis |
|---|---|---|---|---|---|
 VacMaster VP230 | 1/2 HP rotary oil pump — Verified published record — VacMaster product page · VacMaster support note | Conflicting published values: 89 Pounds / 82 lbs / 96.8 lbs — Conflicting published record — VacMaster product page · VacMaster support note · Amazon listing | This analysis | ||
 Avid Armor USV32 | Open analysis | ||||
 Avid Armor USV20 | Conflicting published values: 17.3 pounds / 17.55 lb — Conflicting published record — Amazon listing · Avid Armor product page | Open analysis | |||
 VEVOR DZ-260S Chamber Sealer | Conflicting published values: 120W vacuum pump / 180W vacuum pump — Conflicting published record — VEVOR product page | Open analysis |
Use this analysis when…
Use the published records to check whether VacMaster VP230 fits your measured package, workspace, power supply, and pump-maintenance plan. Confirm every partial, conflicting, or unpublished field before ordering.
Before committing, work through the sizing method — chamber height eliminates more machines than seal width does — and read the pump trade-off if this model’s pump type matters to your duty cycle. If you seal only dry goods, compare whether an external sealer better matches the required mechanism; our comparison covers when a chamber machine is not warranted.
What it needs on an ongoing basis
- Chamber pouches up to the 12 × 15 in maximum VacMaster states — smooth, not the embossed bags an external sealer needs.
- Rotary vane pump oil for the VP230 — this pump is stated as an oil pump, so the oil change is not optional.
Still comparing?
- VacMaster VP215 vs VP230: the wider machine is not the bigger chamber
- Avid Armor vs VacMaster: What Each Brand Tells You Before You Buy
- VacMaster Chamber Vacuum Sealers, from the VP95 to the VP545
- Chamber Vacuum Sealers for Deer Meat Compared by Lid Clearance
- Meat Chamber Vacuum Sealer Fit: 5 Models Matched to the Cut
- 4 Chamber Vacuum Sealers for Liquids Compared by Usable Fill Depth
- Choosing a Sous Vide Chamber Vacuum Sealer by Pouch Temperature Rating

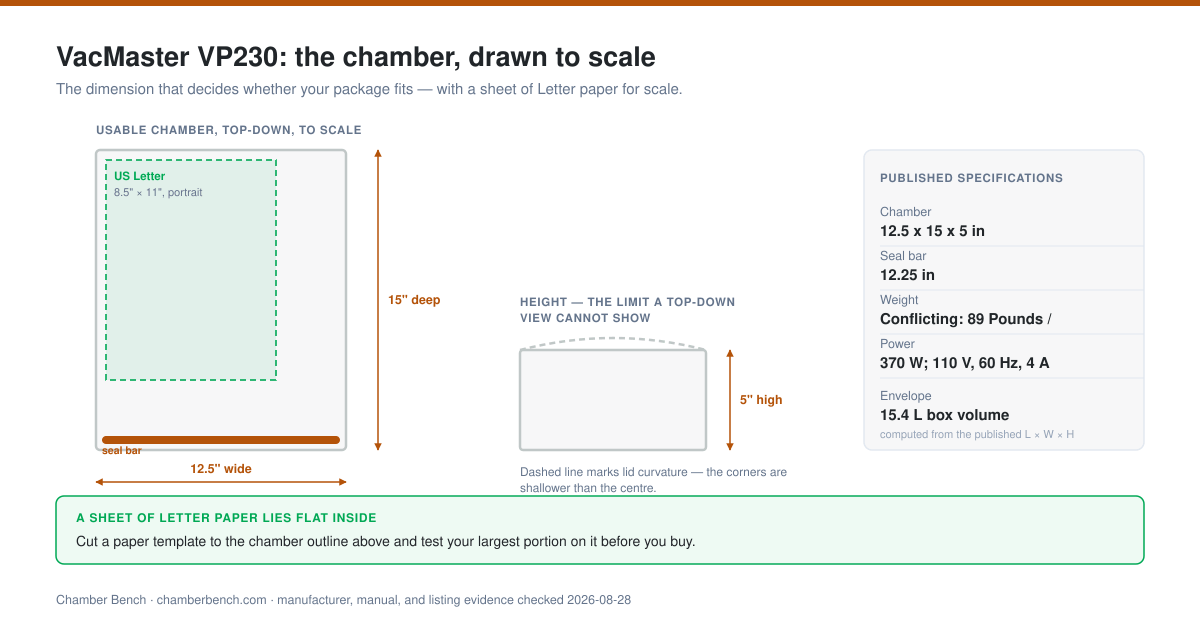

View chamber sizing diagram
Other chamber sealers to compare
All chamber sealers
VacMaster VP230 questions, answered from the maker’s records
How big is the VacMaster VP230 chamber?
VacMaster gives the chamber size as 12.5 x 15 x 5 in.
What size bags fit the VacMaster VP230?
Smooth chamber pouches up to 12 × 15 in, the largest size VacMaster states for it; embossed bags made for edge sealers are not needed. Chamber pouch packs we list that fit both its width and length: Avid Armor Chamber Pouches, 11 × 13 in, 250-count; Avid Armor Chamber Pouches, 10 × 13 in, 250-count; LEM MaxVac Pro Chamber Pouches, 10 × 13 in, 250-count.
Does the VacMaster VP230 need pump oil?
Yes. VacMaster lists an oil pump, so the oil is changed on the schedule in its manual and pump oil is an ongoing purchase. Its record reads: 1/2 HP rotary oil pump.
How long is the VacMaster VP230 seal bar?
VacMaster gives the seal bar as 12.25 in.
How much does the VacMaster VP230 weigh?
VacMaster's own documents disagree on the weight: they give 89 Pounds, 82 lbs and 96.8 lbs in different places. We do not pick one, so measure or ask the seller before relying on it.
What power supply does the VacMaster VP230 need?
VacMaster gives the electrical rating as 370 W; 110 V, 60 Hz, 4 A.
Sources and record status
Each core specification row identifies whether the current record is verified, partial, conflicting, or not published and links to the evidence used for that status.
- VacMaster evidence recordVacMaster · Accessed
- VacMaster evidence recordVacMaster · Accessed
- Amazon evidence recordAmazon · Accessed
How published evidence is evaluated
Chamber Bench compares manufacturer and listing evidence for the eight machines in this comparison. The current analysis covers usable chamber geometry, seal-bar length, pump type, serviceability, and other published ownership constraints.
Where a manufacturer publishes nothing, we say so rather than filling the gap:
- We record which specifications a manufacturer declines to publish.
- We flag contradictions inside a listing rather than quietly picking one figure.
- We keep partial records distinct from complete published dimensions.
- We do not reproduce retailer ratings or prices as editorial fact.
What we have not done: we have not physically run these machines. No cycle times, seal-strength figures, or noise measurements on this site come from our own bench, and none are presented as if they do. Our test protocol documents the measurements required before any model can carry a tested performance conclusion.
